Specifications

Please contact KIWI® Wire Die sales to select the best suitable stone size for your specific requirement.



Tungsten Carbide die for aluminum wire/ bar/ tube drawing (Unit: mm)

Diameter (1) Tolerance (2) Nib size Casing size (3)
0.400-1.000 ±0.003 8×6 25×11
1.010-3.000 ±0.003 13×10 30×16
3.010-5.000 ±0.005 16×14 40×26
5.010-6.000 ±0.005 18×15 40×27
6.010-7.000 ±0.005 20×17 40×28
7.01-9.50 ±0.01 24×16 50×28
9.01-12.00 ±0.01 30×21 60×35
12.01-16.00 ±0.01 35×22 70×35
16.01-20.00 ±0.01 40×25 80×42
20.01-24.00 ±0.01 45×24 90×42
24.01-27.00 ±0.01 50×28 100×50
27.01-30.00 ±0.01 55×30 110×53
30.01-35.00 ±0.01 60×35 120×60





Tungsten Carbide die for copper wire/ bar/ tube drawing (Unit: mm)

Diameter (1) Tolerance (2) Nib size Casing size (3)
0.500-1.000 ±0.003 8×6 25×11
1.010-3.000 ±0.003 13×10 30×16
3.010-4.500 ±0.005 16×14 40×26
4.510-6.000 ±0.005 18×15 40×27
6.010-7.000 ±0.005 20×17 40×28
7.01-7.50 ±0.005 24×16 50×28
7.51-11.00 ±0.01 30×21 60×35
11.01-14.00 ±0.01 35×22 70×35
14.01-18.00 ±0.01 40×25 80×42
18.01-22.00 ±0.01 45×24 90×42
22.00-26.00 ±0.01 50×28 100×50
26.01-30.00 ±0.01 55×30 110×53
30.01-35.00 ±0.01 60×35 120×60





Tungsten Carbide die for low carbon steel wire drawing (Unit: mm)

Diameter (1) Tolerance (2)

Nib size

Casing size (3)

0.500-1.000

±0.003

8×6

25×11

0.500-2.300

±0.003

13×10

30×16

0.500-4.000

±0.005

16×14

40×27

1.200-6.000

±0.005

18×15

40×27

2.300-6.000

±0.005

20×17

40×28

1.800-6.000

±0.005

22×18

45×30

2.30-7.00

±0.01

25×18

50×30

7.01-9.00

±0.01

28×20

60×35

9.01-10.00

±0.01

30×21

60×35

10.01-13.00

±0.01

35×22

70×35

13.01-16.00

±0.01

40×25

80×42

16.01-20.00

±0.01

45×24

90×42

20.01-25.00

±0.01

50×28

100×50

25.01-27.00

±0.01

55×30

110×53

27.01-30.00

±0.01

60×35

120×60









Tungsten Carbide die for large diameter tube and bar drawing (Unit: mm)



Diameter (1) Tolerance (2) Nib size Casing size (3)
30.01-34.00 ±0.01 65×35 130×60
32.00-36.00 ±0.01 70×35 140×68
34.00-41.00 ±0.01 75×35 150×70
41.01-45.00 ±0.01 80×35 160×70
41.00-45.00 ±0.01 85×35 170×70
45.01-58.00 ±0.01 90×40 180×70
53.00-57.00 ±0.01 95×40 190×70
47.00-57.00 ±0.01 100×40 200×70
59.00-70.00 ±0.01 110×40 220×70
59.00-67.00 ±0.01 120×45 240×78
69.00-77.00 ±0.01 130×50 260×85
71.00-88.00 ±0.01 140×50 280×85





(1). Other sizes are available on request.

(2). Tighter tolerances are available when required.

(3). More casing dimensions are available.

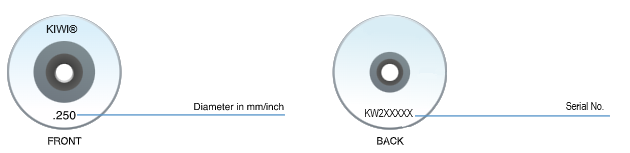

Standard product coding Nib material Engraving
Tungsten carbide (TC)



Please contact KIWI® Wire Die for any special engraving requirements.
